Plain Bearings & Washers

Self-Lubricated Bearings

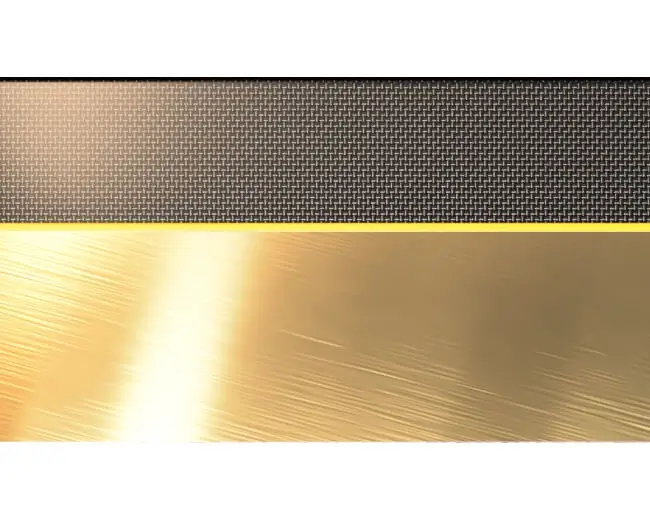

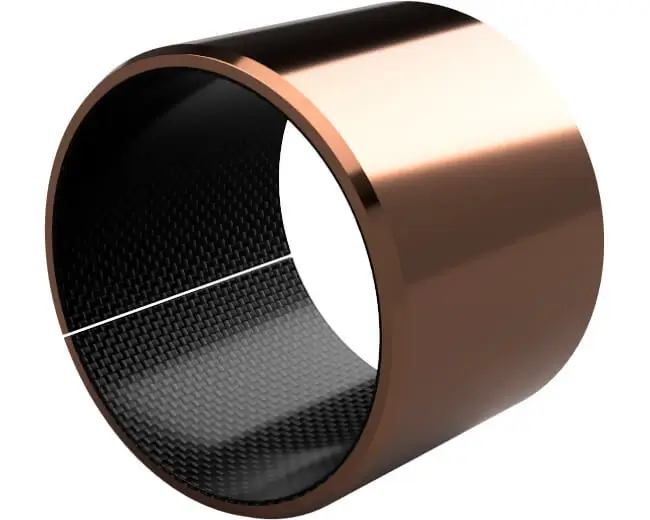

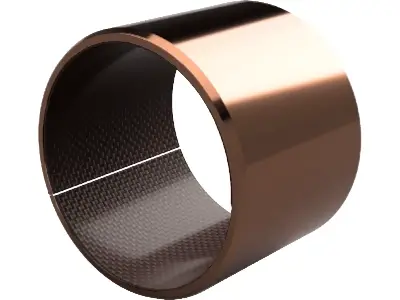

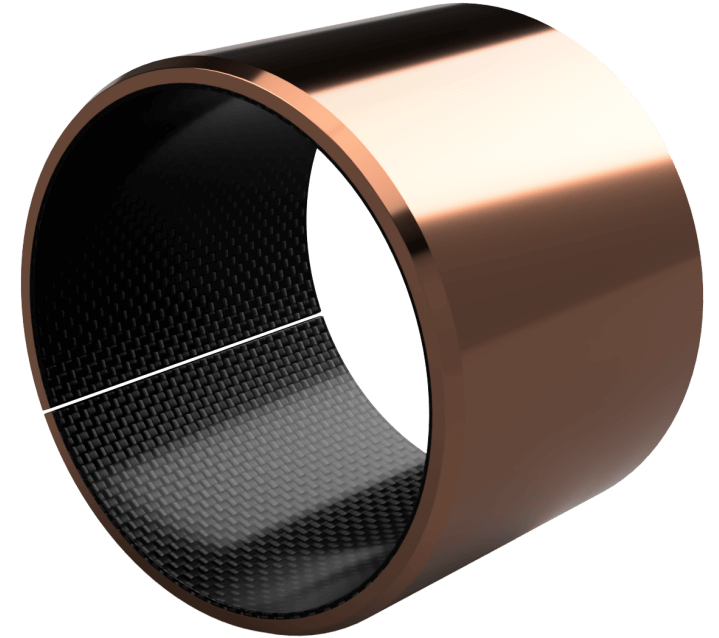

FRITEX^® CRA-B

Multilayer bushing (dry Sliding Bearings) Fritex CRA-B is a three layer composite product.

• PTFE Fabric with special fibres of 0,40 mm thickness.
• Special Adhesive 60μm thickness.
• Bronze CuSn8P from 0,50 to 2,70 mm thick depending on the size of the bush.

Self-Lubricated Bearings

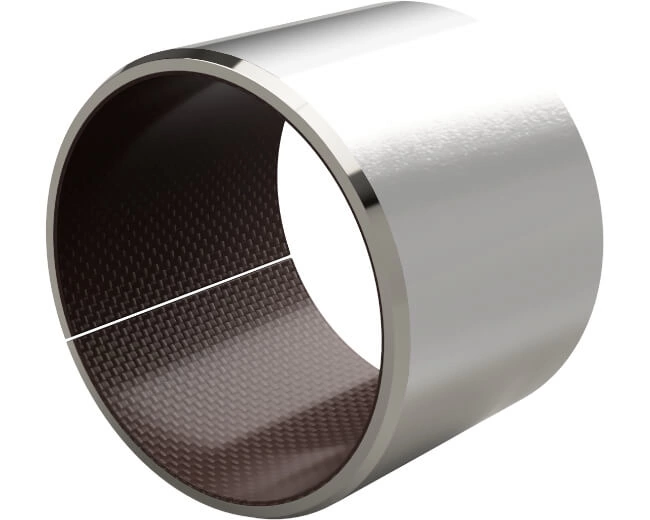

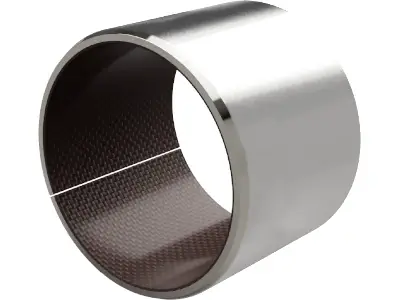

FRITEX^® CRA-A

Multilayer bushing (dry Sliding Bearings) Fritex CRA-A is a three layer composite product.

• PTFE Fabric with special fibres of 0,40 mm thickness.
• Special Adhesive 60μm thickness.
• Aluminium alloy (AlMg3) 0,250 ÷ 0,750 mm (Depending on final thickness required)

Self-Lubricated Bearings

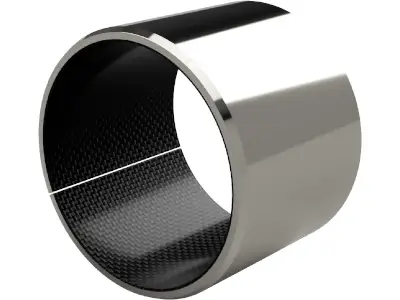

FRITEX^®

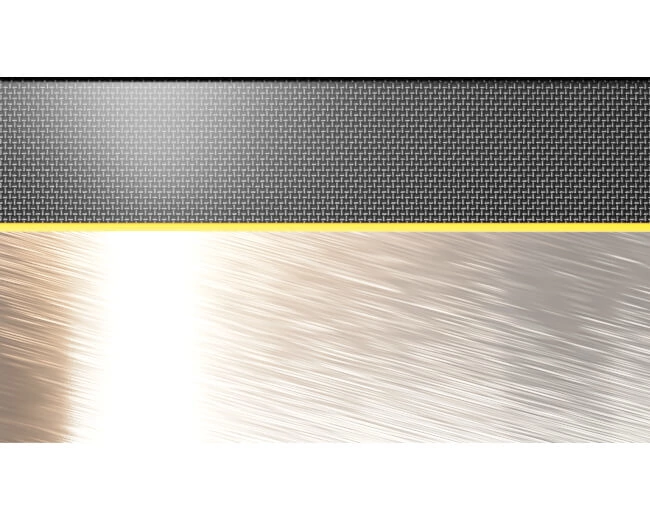

Multilayer bushing (dry Sliding Bearings) Fritex is a three layer composite product.

• PTFE Fabric with special fibres of 0,40 mm thickness.
• Special Adhesive 60μm thickness.
• Low carbon steel supporting strip 0,50 to 2,70 mm thick depending on the size of the bush. The steel is plated for corrosion protection (Tin or Zinc 2 - 8 μm).

Self-Lubricated Bearings

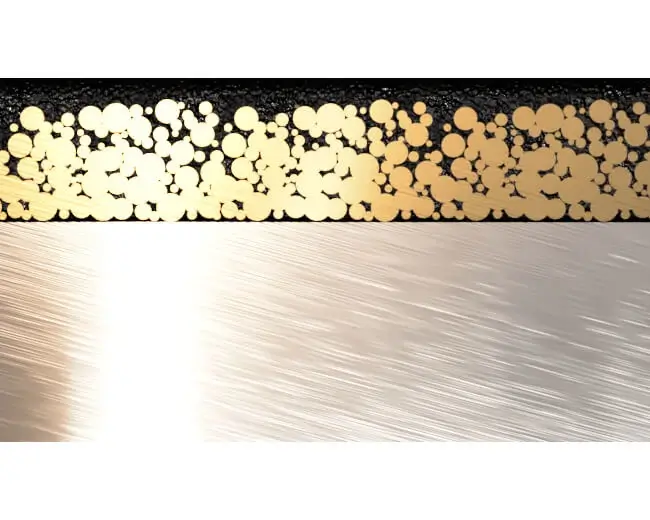

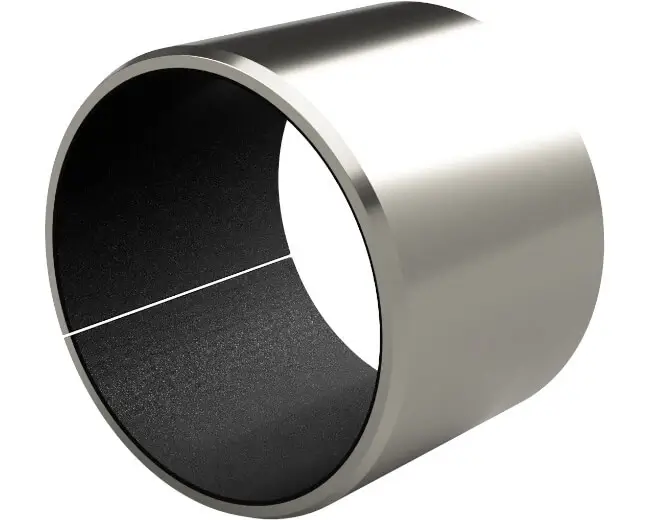

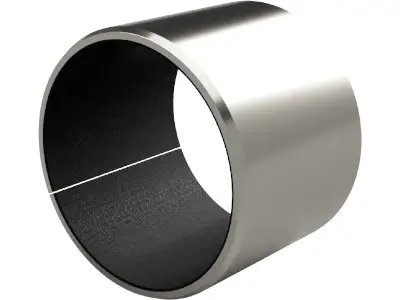

MU

Multilayer bushing (dry Sliding Bearings) MU bearings are self lubricated material and are a three layer composite product.

• PTFE Modified antifriction surface layer 0,01 mm minimum thick (without lead, complying with the European Parliament’s “ELV” directive 2000/53/Ec);
• Porous bronze layer 0,20 - 0,35 mm thickness;
• Low carbon steel supporting strip 0,50 to 2,70 mm thick depending on the size of the bush. The steel is plated for corrosion protection (Tin or Zinc 2 - 8 μm).

Self-Lubricated Bearings

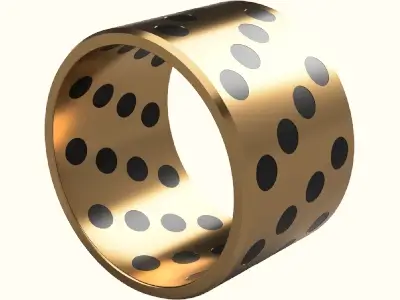

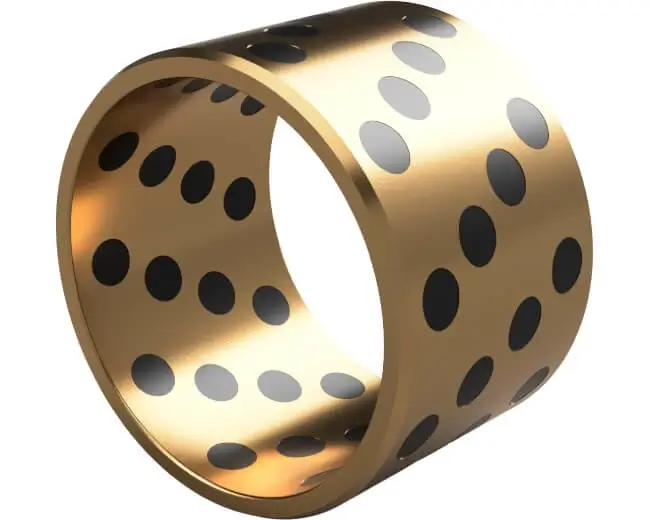

Oltec-500

OLTEC-500 is a material suitable for heavy loads at low sliding speed, solid lubricant is provided by Graphite with additive, which is inserted into the bronze structure of the bearings. The base material are CuZn25Al5. The available items in this material are the cylindrical and flanged bush, washers, strips, and special part on customer requests.

• Supporting shell CuZn25Al5;
• Lubricant Graphite + additive

Pre-lubricated Bearings

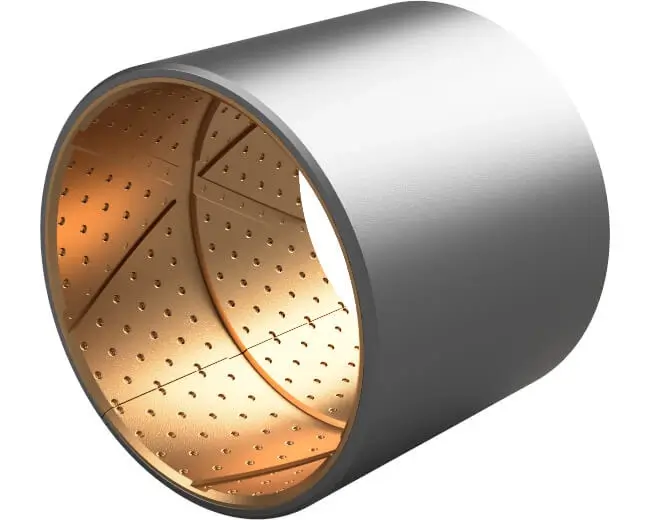

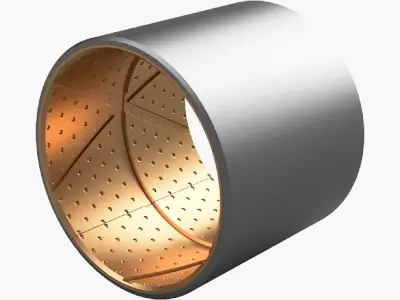

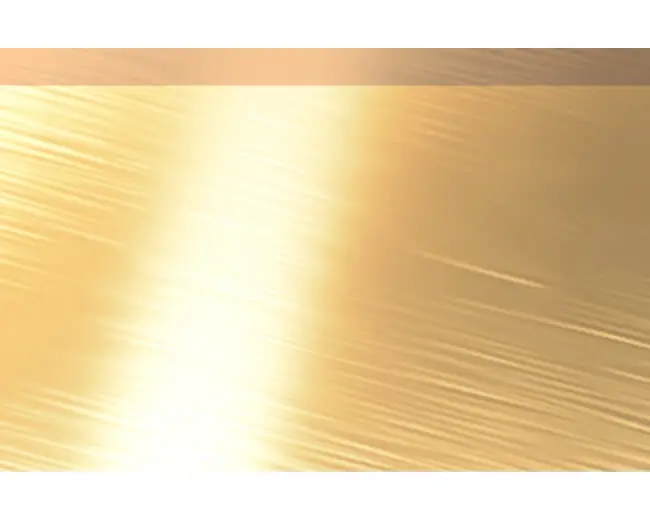

BMT

BMT identifies an entire sliding bearing family constituted from a low carbon steel support over lined by a second layer of thermally sintered bronze. The lubricated bronze surface is the sliding side of the bearings. With oil or grease lubrication these bearings are ideal for all the applications where high strength, minimum dimensions and low friction factor are required. This material is produced in according to ISO 3547-4 Key S6 Designation CuPb10Sn10. The sintered layer is generally of lead bronze (CuSnPb10) which is ideal for sliding couplings with steel. Standard bronze thickness is 0,30 mm (nominal) which may be increased to 0,40 mm (nominal) and more for extra thickness bearings (BMT-4 bearing line).

Self-Lubricated Bearings

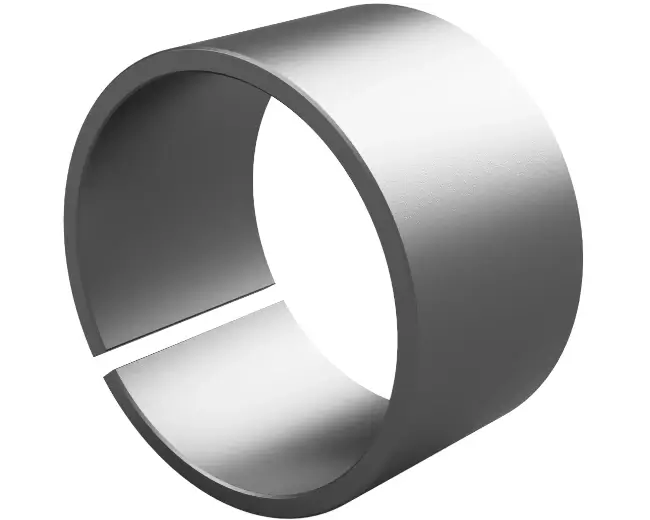

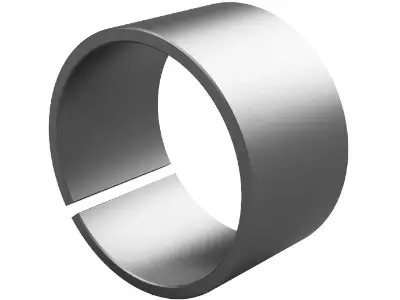

CARBIDE

CARBIDE identify a new generation of Sliding Bearings dedicated at high temperature. This bearing can be used from –200°C to +430°C. Made in Inconel 625 with a special coating treatment “Duritex ML”. With this material we obtained Plain Sliding Bearings, Washers and special parts based on customer drawings.

• Supporting shell Inconel 625;
• Sliding Surface - Special Surface Treatment “Duritex ML”

Polymer Bearings

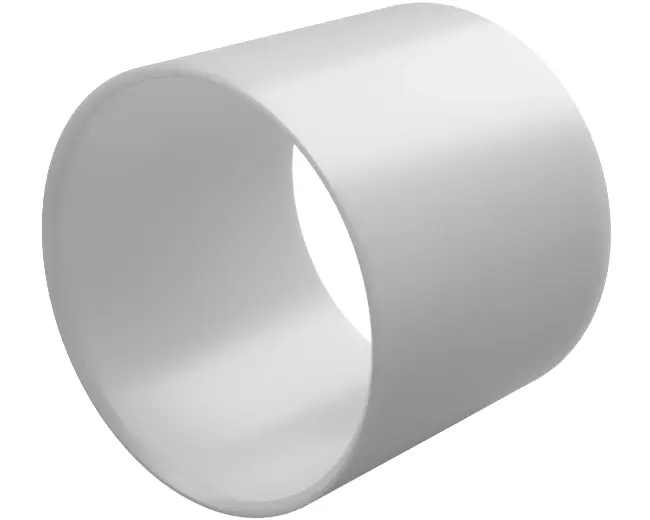

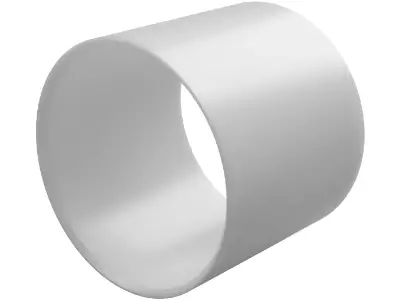

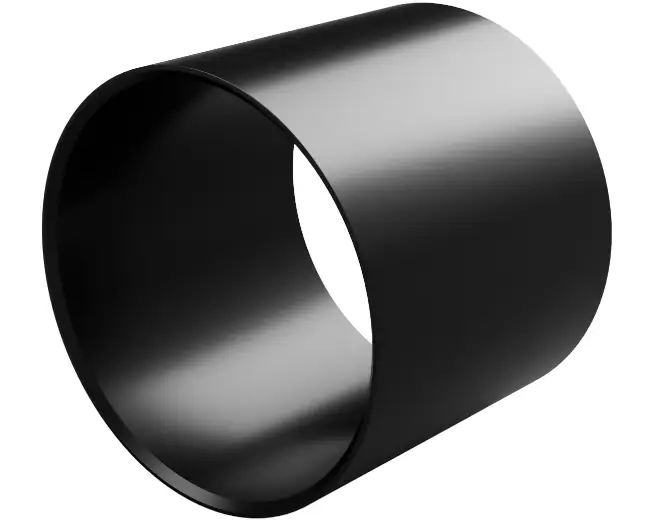

PTFE

PTFE is a thermoplastic material with a wire of fibres mixed with solid lubricants dedicated in those applications where traditional self-lubricating cannot guarantee the necessary resistance to the wear. This product has a good mechanical property and excellent self-lubricating property.

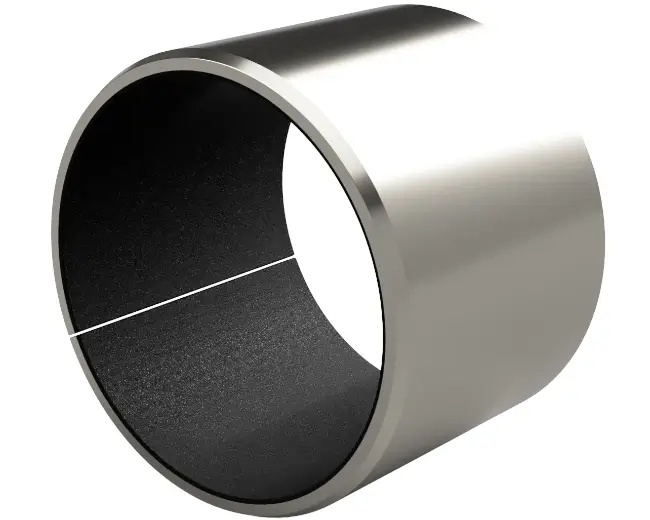

DRINOX

Pre-lubricated Bearings

MX

The MX range of products includes bushes, thrust washers and strips both in metric and imperial sizes. Furthermore, MX bearings can be supplied, on request, in metric or imperial sizes. MX is supplied in the pre-finished version, ready for use. X structure combines in the best way the mechanical strength of the steel, the bronze thermal

• Sliding layer Pom-C (DIN 7728)
• Intermediate layer CuSn10 Sintered
• Connecting layer Cu
• Supporting shell Low Carbon Steel (EN 10139)
• Protective layer Sn or Zn
